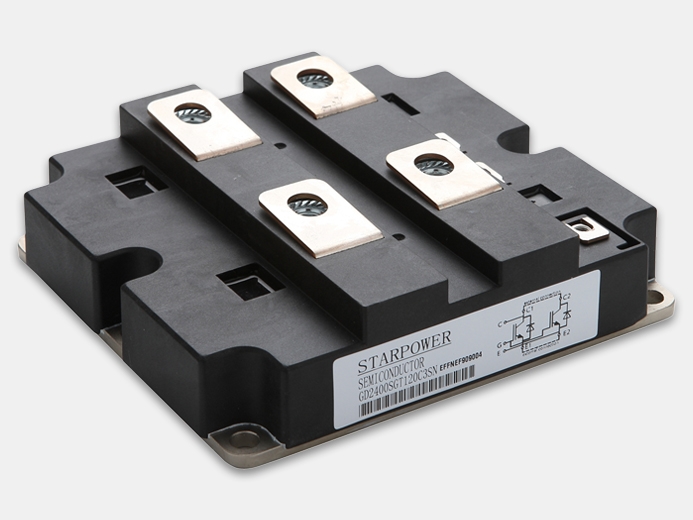

IGBT модули большой мощности
Производитель: StarPower
IGBT модули большой мощности: Рабочие напряжения Uce-=1200В,1700В, 3300В. Токи коллектора 450….3600А| Артикул | Корпус | Ток, А | Питание, В | Технология чипа | Структурная схема |
|
GD450HFY120P1S |
P1.0 | 450 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Half Bridge |
|
GD450CUY120P1S |
P1.0 | 450 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Boost Chopper |
|
GD450CLY120P1S |
P1.0 | 450 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Buck Chopper |
|
GD600HFY120P1S |
P1.0 | 600 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Half Bridge |
|
GD650HFX170P1S |
P1.0 | 650 | 1700 | Trench FS IGBT, Low Loss | Half Bridge |
|
GD800HFY120C3S |
C3.1 | 800 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Half Bridge |
|
GD800SGX170C3S |
C3.2 | 800 | 1700 | Trench FS IGBT, Low Loss | Single Switch |
|
GD800HFX170C3S |
C3.1 | 800 | 1700 | Trench FS IGBT, Low Loss | Half Bridge |
|
GD900HFY120P1S |
P1.0 | 900 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Half Bridge |
|
GD900CUY120P1S |
P1.0 | 900 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Boost Chopper |
|
GD900CLY120P1S |
P1.0 | 900 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Buck Chopper |
|
GD900SGU120C3SN |
C3.2 | 900 | 1200 | NPT Ultra Fast IGBT | Single Switch |
|
GD900SGU120C3SN(SIC Diode) |
C3.2 | 900 | 1200 | NPT Ultra Fast IGBT | Single Switch |
|
GD900TLY120P2S |
P2.0 | 900 | 1200 |
Advanced Trench FS IGBT, Low Loss |
NPC2 |
|
GD1000HFX170P2S |
P2.0 | 1000 | 1700 | Trench FS IGBT, Low Loss | Half Bridge |
|
GD1200HFY120C3S |
C3.1 | 1200 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Half Bridge |
|
GD1200HFX170C3S |
C3.0 | 1200 | 1700 | Trench FS IGBT, Low Loss | Half Bridge |
|
GD1200SGX170C3S |
C3.2 | 1200 | 1700 | Trench FS IGBT, Low Loss | Single Switch |
|
GD1400HFY120P2S |
P2.0 | 1400 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Half Bridge |
|
GD1400HFX170P2S |
P2.0 | 1400 | 1700 | Trench FS IGBT, Low Loss | Half Bridge |
|
GD1600SGX170C3S |
C3.2 | 1600 | 1700 | Trench FS IGBT, Low Loss | Single Switch |
|
GD1600SGY120C3S |
C3.1 | 1600 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Single Switch |
|
GD2400SGY120C3S |
C3.2 | 2400 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Single Switch |
|
GD2400SGY120C4S |
C4.0 | 2400 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Single Switch |
|
GD2400SGX170C4S |
C4.0 | 2400 | 1700 |
Trench FS IGBT, Low Loss |
Single Switch |
|
GD3600SGY120C4S |
C4.0 | 3600 | 1200 |
Advanced Trench FS IGBT, Low Loss |
Single Switch |
|
GD3600SGX170C4S |
C4.0 | 3600 | 1700 |
Trench FS IGBT, Low Loss |
Single Switch |
IGBT модули на блокирующие напряжения Uce=1200В,1700В, 3300В. Номинальные токи коллектора 450….3600А. IGBT кристаллы:.Trench FS , Low Loss, NPT Ultra Fast, Advanced Trench FS. Более 10 вариантов электрических топологий, включая широко применяемые одиночный ключ, полумост, трёхфазный мост, повышающие и понижающие чопперы, схема с общим эмиттером. Стандартный набор корпусов, включая корпуса типа IHM, IHV, PrimePACK2, PrimePACK3.
Области применения:
Области применения:
- мощные промышленные приводы,
- мощные источники питания,
- индукционный нагрев.
